Identificador: 647
Abierta
.jpg)
Descripción

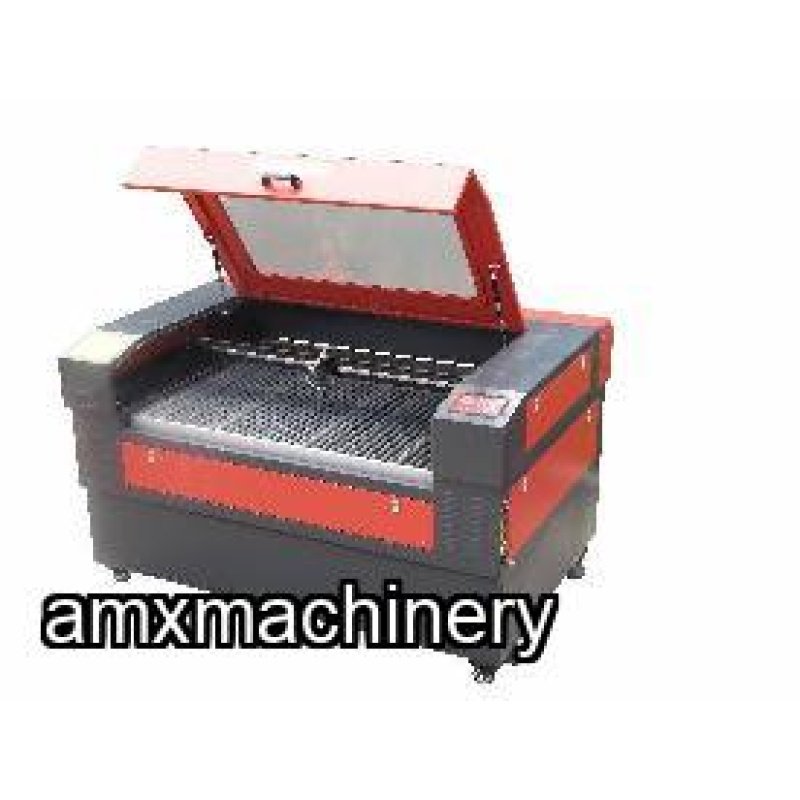

PARTE: 2TA-CLC4024 - GRABADORA LASER CNC 40" X 24"
NUEVA CON GARANTIA
39.6" X 23.6" GRABADORA/CORTADORA LASER
- Applications for most material and may industries. Some include but not limited to wood, leather, marble, glass, paper, rubbery, plastic, cloth, ABS and many more.
- Durable and steady are key features using double guide-rails that ensure long life of motion and accuracy.
- Unique optics structure of the fly ray, which has low warp with high, steady and easy optical adjustment.
- Adaptation of the K9 reflect lens and ZNSE focus lens, of which reflectivity and penetrability is the strongest among congener fittings while the facula is thinner with stronger power of cutting. With this combination it maximizes work efficiency and reduces the work piece cost.
- DSP control system based on the stepper Up-Controller Unit of PCI Lines in PV. It adopts the world advanced DSP-TMS320, XC2S300 controller chip which has the advantage of high speed, stable, strong preventing interference.
- The software of the machine has multi-functions; supports the file of DWG, PLT, BMP, DXF, and AI which can work with the software of AutoCAD, CorelDraw, and Photoshop.
- This software has the function of power-off memory and continues from the stop point.
- Back door design for opening to applied unlimited material length.
- Heavy gauge sheet metal frame
SPECIFICATIONS | 2TA-CLC-1616 | 2TA-CLC-2012 | 2TA-CLC-4024 |
Max. Working Size | 15.8” x 15.8” | 19.6" x 11.8" | 39.4" x 23.6" |
Laser Power | 40 W | 50 W | 60 W |
Engraving Speed | 0 ~ 2120 ipm | 0 ~ 1890 ipm | 0 ~ 2360 ipm |
Cutting Speed | 0-950 ipm | 0-950 ipm | 0 ~ 1180 ipm |
Reposition Accuracy | 0.0005 " | 0.0005 " | 0.0005 " |
Minimum Letter Size | 0.04 " | 0.04 " | 0.04 " |
Power 220V | 1000W | 1000 W | 1500 W |
Machine Size (L x W x H) | 34" x 36" x 18" | 36" x 26" x 33" | 72" x 39" x 41" |
Machine Weight | 154 lbs | 268 lbs | 477 lbs |
